Mixed-UseLOD 400 + 4D/5DISO 19650 VERIFIED
Vanguard Square Mixed-Use Development
Client: Vanguard Global Realty
Location: Bengaluru, India
Area: 1,850,000 Sq. Ft.
Year: 2024
01. PROJECT OVERVIEW
Engineering Scope & Objectives
VDC execution for a mixed-use complex comprising a shopping mall podium, twin commercial towers, and residential luxury apartments.
Project Specifications
Sector Category:Mixed-Use
Model Detail:LOD 400 + 4D/5D
Gross Built Area:1,850,000 Sq. Ft.
Execution Standard:ISO 19650-2
02. SERVICES DELIVERED
Multidisciplinary Engineering Services
03. SOFTWARE USED
Engineering Software Engine
04. CHALLENGES
Engineering Bottlenecks & Site Constraints
Simultaneous execution of retail podium and tower foundations with overlapping crane radii and heavy utility tie-ins.
05. SOLUTIONS
BIMVEDH Technical Implementation
Delivered unified Common Data Environment (CDE) protocols, automated weekly quantity variance reports, and 4D site crane clearance simulations.
06. VERIFIED OUTCOMES
Quantitative Project Metrics & ROI
Key Impact Highlights:
Zero crane collision incidents during foundation execution
Automated 5D quantity takeoff reduced estimate variance to <1.5%
INTERACTIVE VDC INSPECTION
Scan-to-BIM Point Cloud vs. 3D Model Comparison
INTERACTIVE SCAN-TO-BIM COMPARISONDrag slider left/right to inspect model accuracy

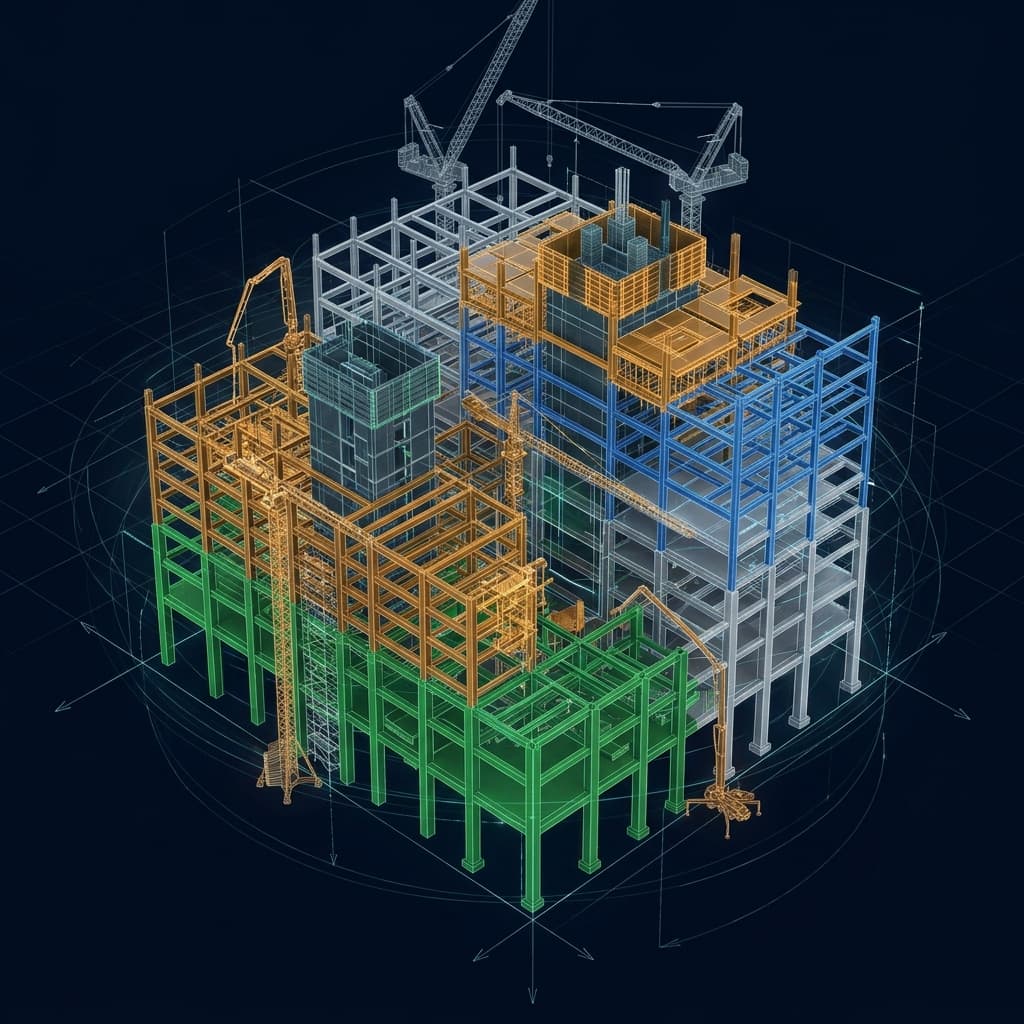

50% Model Alignment07. PROJECT GALLERY
High-Resolution BIM Renders & Visual Artifacts
