Cyber City 45-Story Commercial Tower

Client: Prestige Horizon Developers

Location: Mumbai, India

Area: 1,450,000 Sq. Ft.

Year: 2024

01. PROJECT OVERVIEW

Engineering Scope & Objectives

Complete Architectural, Structural, and MEPF LOD 400 BIM modeling and 4D Synchro construction sequencing for a landmark 45-story commercial office skyscraper.

Project Specifications

Sector Category:Commercial

Model Detail:LOD 400

Gross Built Area:1,450,000 Sq. Ft.

Execution Standard:ISO 19650-2

02. SERVICES DELIVERED

Multidisciplinary Engineering Services

LOD 400 Multidisciplinary BIM Modeling

Facade System Structural Coordination

4D Synchro Construction Logistics Simulation

COBie Asset Data Extraction

03. SOFTWARE USED

Engineering Software Engine

Autodesk Revit

Navisworks Manage

Synchro 4D Pro

ACC

04. CHALLENGES

Engineering Bottlenecks & Site Constraints

Tight urban footprint with complex curved glass facade and congested MEP riser shafts leading to potential site delays.

05. SOLUTIONS

BIMVEDH Technical Implementation

Modeled structural steel frames, curtain wall connections, and MEP risers in high-precision LOD 400 to resolve 3,850+ clashes before site pour.

06. VERIFIED OUTCOMES

Quantitative Project Metrics & ROI

AUDITED ACCORDING TO ISO 19650

3850+Clashes Resolved

14.5%Cost Rework Saved

6 WksSchedule Compressed

12:1Verified ROI Ratio

Key Impact Highlights:

Resolved 3,850 hard & soft clashes in Navisworks

Saved $420,000 in rework costs for ductwork installation

Generated COBie data sheets for facility management handover

INTERACTIVE VDC INSPECTION

Scan-to-BIM Point Cloud vs. 3D Model Comparison

LOD 400 Parametric Revit Model

3D LiDAR Point Cloud Capture

INTERACTIVE SCAN-TO-BIM COMPARISONDrag slider left/right to inspect model accuracy

50% Model Alignment

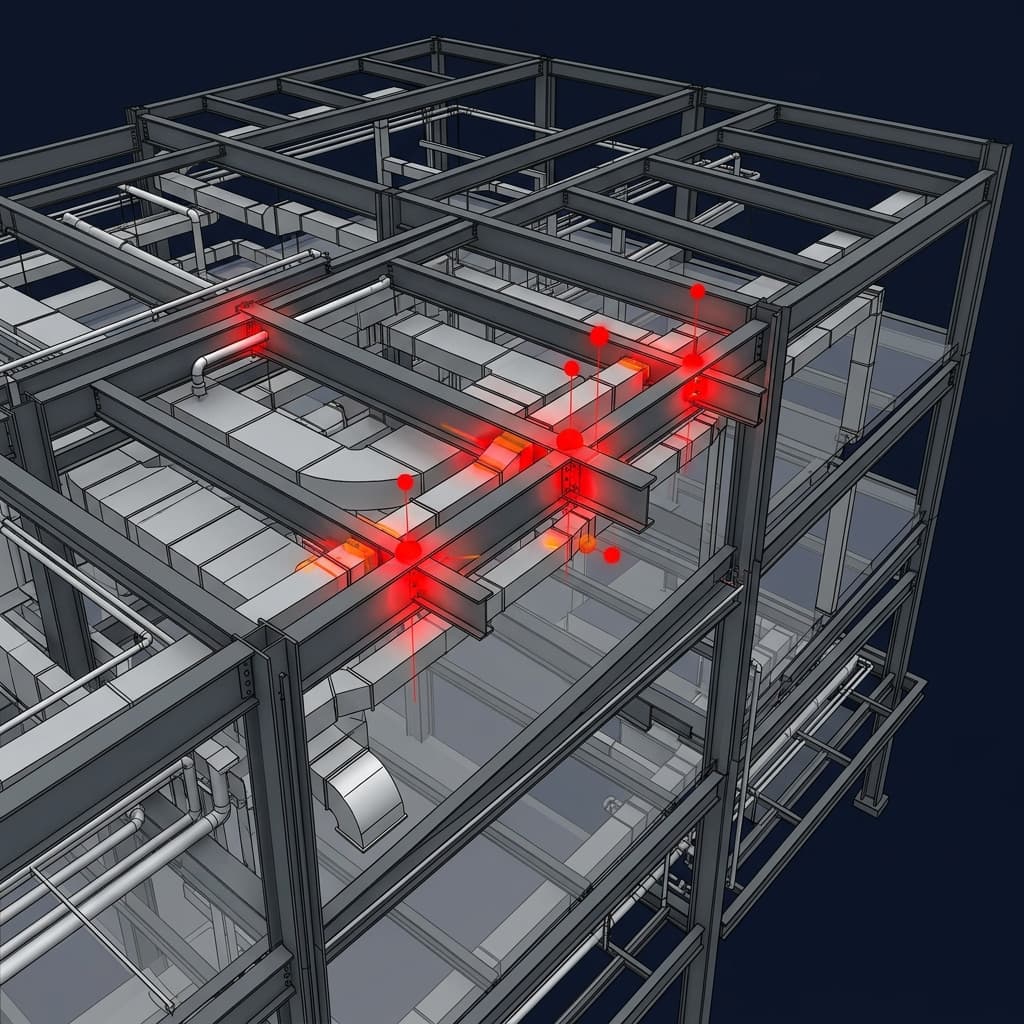

07. PROJECT GALLERY
